Centre d'usinage

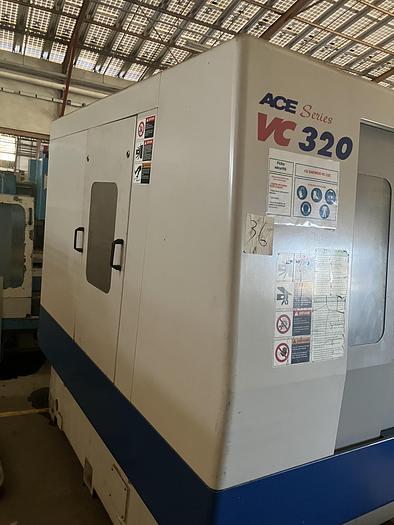

Daewoo ACE VC320 Vertical Machining Center

General Specifications

• Machine Type: Vertical Machining Center
• Model: ACE VC320

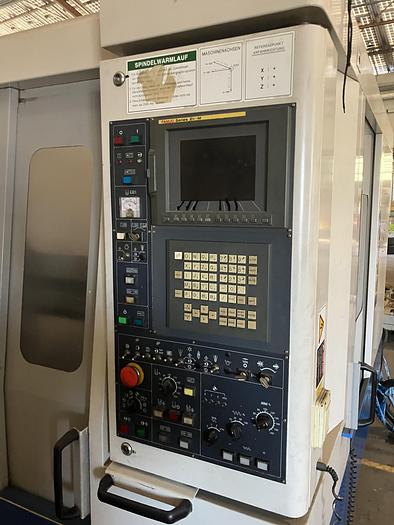

• Control System: Fanuc 21i-MB CNC
• Year: 2002

Table Specifications

• Table Size: 650 mm x 355 mm
• Pallet Load Capacity: 150 kg
• Twin Pallet Rotary System: Yes (Optional on some models)

Axis Travels

• X-Axis: 520 mm
• Y-Axis: 320 mm
• Z-Axis: 300 mm
• Max Feed Rate (X/Y): 36 m/min
• Max Feed Rate (Z): 48 m/min

Spindle Specifications

• Max Speed: 10,000 RPM
• Spindle Motor Power: 7.5 kW
• Spindle Taper: BT30

Tool System

• Tool Changer Type: Automatic Tool Changer (ATC)
• Number of Tool Stations: 14

Machine Weight and Dimensions

• Weight: Approximately 3,200 kg
• Dimensions (L x W x H): 67” x 117” x 108”

Additional Features

• Chip Auger: Included
• Coolant System: Included
• Hand Controller: Standard for Fanuc systems
